PATCHBAYS
34
VPP Video Patchbay Series
Features and Benefits
? HD Series rated from DC to
3.0 GHz
? SD Series has a bandwidth from
DC to 1.75GHz
? Black thermoplastic modules
insulate jacks from chassis
? Jacks feature rugged heavy duty
housings
Video Jack Specifications
Electrical
Rated Bandwidth: 3.0 GHz (HD),
1.75 GHz (SD)
Characteristic Impedance:
75 ohms
Return Loss: Better than –15 dB
Insertion Loss: Better than –.5 dB
Contact Resistance: Less than 20
milliohms
Termination Resistance:
75 W, ±1%
Center Conductor: Accepts .090
pin diameter

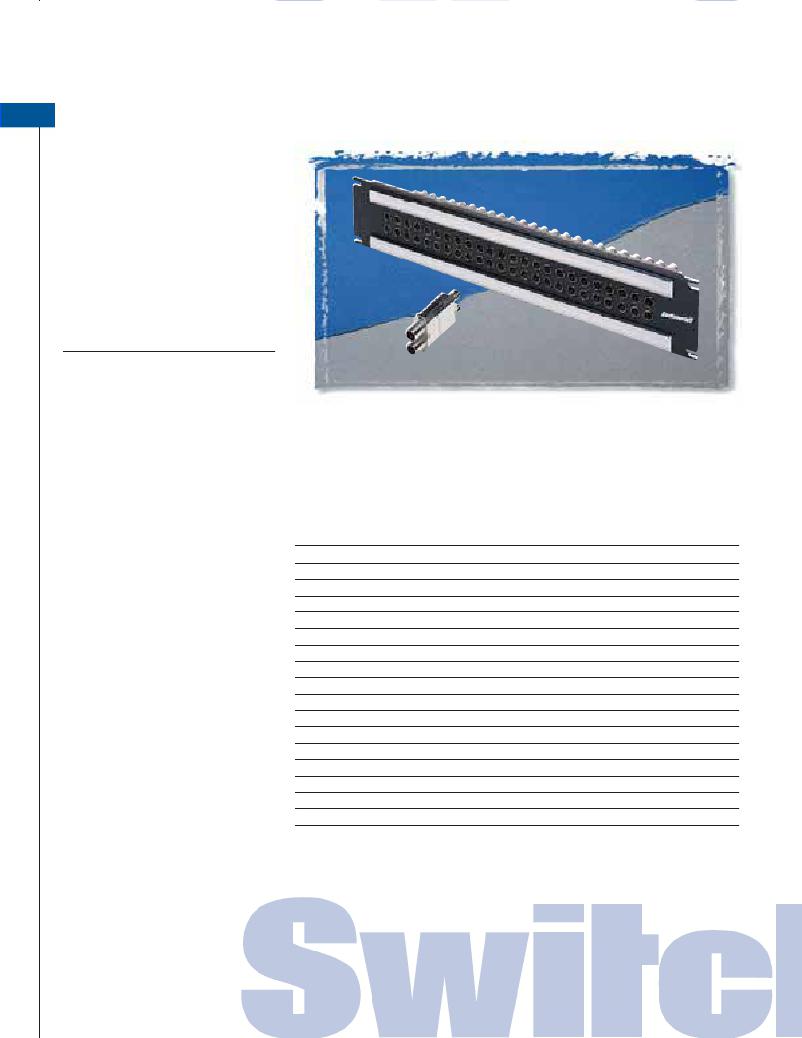

VPP24K3HD75T
VJHD*75TX
The VPP Series video patchbays offer a wide variety of options for video patching.
The HD Series meets SMPTE 292M specifications for high definition video signaling,
covering a bandwidth range from DC to 3.0GHz. The SD Series is perfect for serial
digital, with a bandwidth from DC to 1.75GHz. Both come in either terminated or
non-terminated, 24 or 26 jacks, 1.75" or 3.5" heights.
Ordering Information
Mechanical
Mechanical Shock: Per MIL-STD-
202, Method 213, Test condition I
Part Number Type of Jack
VPP24K1HD*75T HD
VPP24K1HD*NT HD
No. of Jacks
24
24
Height
1.75"
1.75"
Description
Terminated
Non-term
Vibration: Per MIL-STD-202,
Method 201
Life Cycle: 30,000
Materials
Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy,
gold plated
Switching Springs: Copper alloy,
gold plated
Grounding Contacts:
HD Series - Copper alloy, gold
plated
SD Series - Copper alloy, nickel
plated
Insulators: Thermoplastic,
VPP24K1SD*75T
VPP24K1SD*NT
VPP26K1HD*75T
VPP26K1HD*NT
VPP26K1SD*75T
VPP26K1SD*NT
VPP24K3HD*75T
VPP24K3HD*NT
VPP24K3SD*75T
VPP24K3SD*NT
VPP26K3HD*75T
VPP26K3HD*NT
VPP26K3SD*75T
VPP26K3SD*NT
SD
SD
HD
HD
SD
SD
HD
HD
SD
SD
HD
HD
SD
SD
24
24
26
26
26
26
24
24
24
24
26
26
26
26
1.75"
1.75"
1.75"
1.75"
1.75"
1.75"
3.5"
3.5"
3.5"
3.5"
3.5"
3.5"
3.5"
3.5"
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
UL 94V-0 rated
Environmental
Operating Temperature:
– 40°C to 65°C
Storage Temperature:
– 55°C to 85°C
Thermal Shock:
Per MIL-STD-202, Method 107
Moisture and Humidity:
Per MIL-STD-202, Method 106
* Add “N” for non-normalled version
See Page 36 for Individual Jacks Ordering Information
